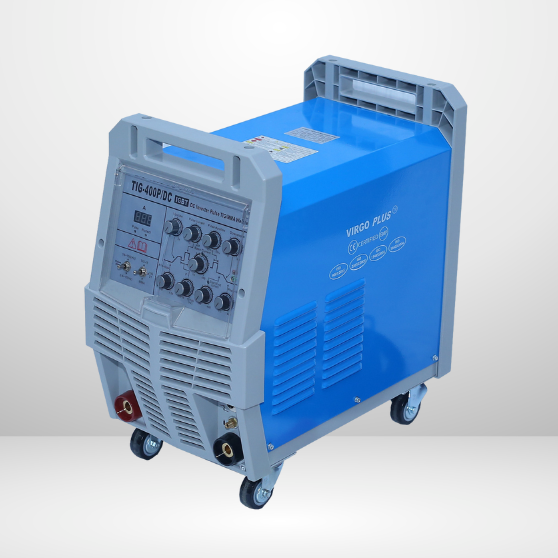

TIG 400P/DC – TIG-P Series (IGBT) Inverter DC TIG Welder
High-efficiency inverter-based DC TIG/MMA welder with pulse mode, adjustable slope timing, arc ending control, and 30m cable compatibility.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Full Description (Product Details):
Overview:
-
Advanced IGBT inverter technology with high working frequency and energy saving.
-
Dual-mode machine supports both TIG and MMA welding.
-
Exact digital preset for voltage and current ensures easy, precise operation.
-
Arc can be started at a distance — supports up to 30m welding cable.
-
Independently adjustable pre-flow and post-flow gas control.
-
Adjustable upslope and downslope for smooth arc transitions.
-
Suitable for manual and automated welding with pulse frequency adjustment.
-
Built-in arc ending adjustment reduces fatigue and improves control.
-
Safety features: Over-voltage, under-voltage, and over-current protection.
-
Tri-proof design ensures stable performance even in tough conditions.
Standard Accessories:
-
1 pc WC-400 TIG torch (4m)
-
1 set earth clamp with 35mm² cable (2m)
Technical Specifications:
Specification | Details |
---|---|
Phase | 3PH |
Input Voltage | AC 415V * 3P ±10% |
Frequency | 50/60 Hz |
Rated Input Current | TIG: 15A / MMA: 20A |
Rated Output Voltage | TIG: 23V / MMA: 32V |
No-load Voltage | 68V |
Output Current Range | 12 – 400A |
Duty Cycle | 60% |
Arc Starting | HF Vibration |
Protection Grade | IP21S |
Weight | 33 Kg |
Dimensions | 590 × 350 × 600 mm |
