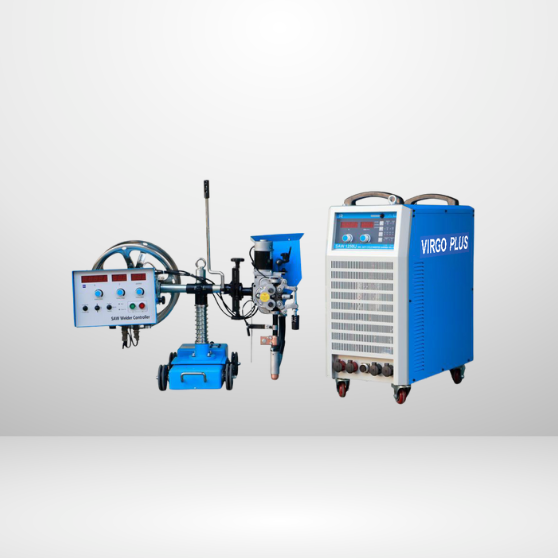

SAW 1250 IJ – SAW Heavy Duty Series (IGBT) Inverter DC Welder

Original price was: ₹10.Current price is: ₹0.

11 products sold in last 17 hours
Selling fast! Over 4 people have in their cart

Heavy-duty SAW welding machine with IGBT inverter control, 1250A output, arc-stability features, and compatibility with carbon steel, stainless steel, and thick structural metals.

26 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

  • Advanced IGBT Technology: Ensures stable arc, adjustable current, smooth weld formation, and energy-saving operation.

  • High ARC Success Rate: Supports both scratching and drawing arc starting methods for efficient arc ignition.

  • High-Frequency Drive: 20 kHz inverter control provides low weight and compact size for easy movement.

  • Built-in Safety Features:

    • No-load ARC voltage stability

    • Automatic buck-pumping circuit

    • Temperature, overload, and pressure protection

  • Multi-Process Capability: Supports SAW, MMA, and gouging modes.

  • Switch Control & Automation Ready: Compatible with semi-auto and automatic SAW tractors.

  • Reliable Wire Feeding System: Optional trolley-mounted tractor provides smooth wire feeding with 2.0–5.0 mm wire diameter support.

  • Industrial Application: Ideal for boiler welding, bridge construction, pressure vessels, metallurgy, and machinery manufacturing.

Standard Accessories:

  • 1 pc Welding tractor mounted control box set

  • 1 set Control cable 14 mm² (10 m)

  • 2 pcs Welding cable 70 mm² (10 m)

  • 2 pcs Earthing cable 70 mm² (5 m)

  • 2 pcs Wheel-track

Technical Specifications:

Specification Details
Phase 3PH
Input Voltage AC 415V × 3P ±10%
Frequency 50/60 Hz
Rated Input Capacity 60 KVA
Rated Input Current 89 A
Rated No-load Voltage 90–120 V
Rated Load Voltage 44 V
Current Adjusting Range 60–1250 A
Duty Cycle 100%
Efficiency 89%
Power Factor 0.93
Insulation Class F
Shell Protection Class IP21S
Dimensions (mm) 775 × 505 × 925
Net Weight 95 kg

Tractor with Trolley Mounted (Optional Unit):

Function Specification
Moving Voltage DC 110V (Rated)
Rated Moving Current 0.4 A
Rated Wire Feeding Voltage DC 110V
Rated Wire Feeding Current 1 A
Welding Speed 0.2–1.5 m/min
Wire Feeding Speed 3–7 m/min
Supported Wire Diameter 2.0–5.0 mm
