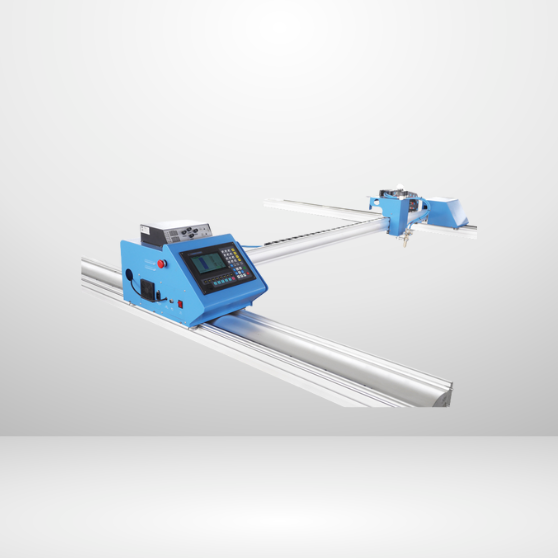

PG CNC 2530 – Portable Gantry CNC Cutting Machine

Original price was: ₹10.Current price is: ₹0.

7 products sold in last 5 hours
Selling fast! Over 10 people have in their cart

Heavy-duty CNC cutting system with dual flame/plasma mode, USB CNC file transfer, ARC voltage height controller, and high-precision cutting.

23 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Product Overview:

  • Portable gantry CNC cutting system from Virgo Plus designed for high-precision plate cutting.

  • Compatible with both flame cutting (Oxy-Fuel) and plasma cutting systems.

  • Equipped with ARC voltage height control for plasma operation.

  • Features a USB interface for easy CNC file transfer.

  • Includes a built-in library for standard shapes.

Key Features:

  • Dual-mode cutting: Flame & Plasma

  • ARC Voltage Height Control (THC)

  • Steel rail with combined installation and motion system

  • 7″ LCD monitor with optional upgrades

  • Supports both straight and curved path cutting

  • FASTCAM software compatibility

  • File transmission via USB and keyboard support

Technical Specifications:

Specification Details
Installation Mode Combined installation and motion system
Cutting Shape Steel plate with any shape
LCD Display 7″ 800×480 + optional: 256M/400MHz upgrades
Effective Cutting Size W2500 × L3000 mm (extendable in 3000 mm steps)
Railway Size W3000 mm (Double V chassis rail)
Flame Cutting Thickness ≤100 mm
Plasma Cutting Thickness Min 2 mm – Max (as per plasma power source)
Height Control ARC Voltage Height Control (THC)
Motor & Driver Stepper motor and driver
Cutting Speed 0 – 6000 mm/min
Drive Mode Dual
Cutting Mode Flame and Plasma
Ignition Electric
File Transmission USB + Keyboard
Cutting Gases O₂, Acetylene, Propane, LPG, Plasma Air
Cutting Accuracy ±0.5 mm
Software FASTCAM
Power Supply 220V / 110V 50Hz/60Hz
