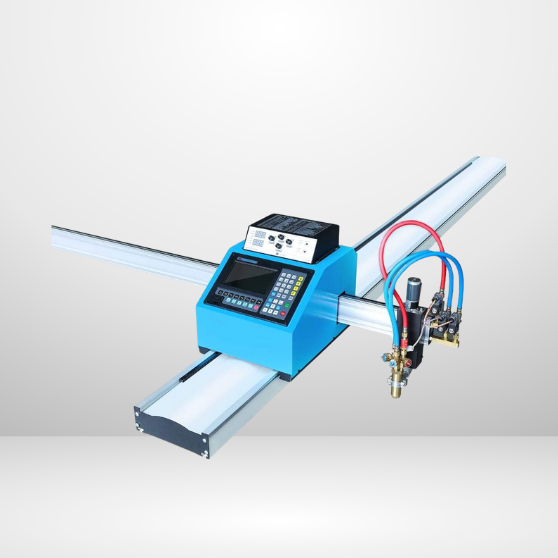

P-CNC 1530 – Portable CNC Cutting Machine

Original price was: ₹10.Current price is: ₹0.

2 products sold in last 19 hours
Selling fast! 1 person has in their cart

Compact CNC cutting system for precise oxy-fuel and plasma cutting, with USB interface, ARC voltage height control, and standard shape library.

22 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Product Overview:

  • Portable CNC Cutting System by Virgo Plus offers a simplified and cost-effective solution for precision cutting.

  • Can operate using flame cutting (Oxy-Fuel torch) or be paired with a plasma source.

  • Includes ARC voltage height controller when used with plasma for consistent cuts.

  • CNC codes can be transferred via USB interface; supports standard shape library.

Key Features:

  • Dual-mode cutting: Flame & Plasma

  • Integrated ARC voltage height controller (optional)

  • High-resolution 7-inch LCD with menu-driven interface

  • USB support for file transfer (U disk, max 16GB)

  • Compatible with various gases: Oxygen, Acetylene, Propane, LPG, Plasma air

  • Easy operation with built-in keyboard and file library

  • Supports G-code and FASTCAM software

Technical Specifications:

Specification Details
Installation Mode Web combined aluminum alloy body + rail
Cutting Shape Steel plate with any shape
LCD Display 7-inch 800×480 HD + 16MB SDRAM
Effective Cutting Size W1500×L3000mm (can be extended)
Railway Size W1800mm×L3500mm
Flame Cutting Thickness 5–200 mm
Plasma Cutting Thickness 0.5–25 mm (as per plasma power)
Height Control Optional (ARC / Voltage Height Control THC)
Motor and Driver Stepper motor + driver
Cutting Speed 0–4000 mm/min
Drive Mode Single-side
Cutting Mode Flame and Plasma
File Transmission USB + keyboard
Cutting Gases Oxygen / Acetylene / Propane / LPG / Plasma Air
Gas Pressure Max 1.5 MPa
Oxygen Pressure Max 1.5 MPa
Software FASTCAM
Power Supply 220V ±15% 50Hz/60Hz
Working Temperature -10°C to +60°C / ≤95% RH
