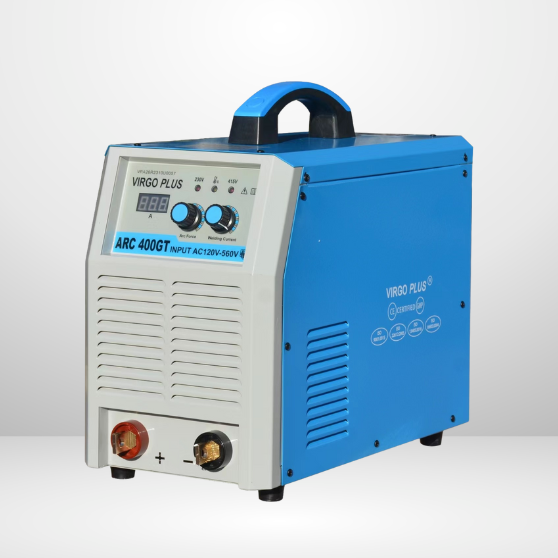

Product Description (Full):

• Technology: Latest inverter with pulse width technology ensuring lightweight and compact design.

• Transformer: High-frequency transformer with soft magnetic ferrite for high efficiency.

• Safety:

  • VRD low voltage technology for safety during non-welding periods.

  • Full protection against over-voltage, under-voltage, and input power surges.

• Energy Saving:

  • Passive power factor correction.

  • Power saving with automatic main circuit cut-off after 5 seconds of inactivity.

• Performance:

  • Continuously adjustable arc starting current for superior starting performance.

  • Arc force and anti-stick feature for better electrode burning and enhanced welding quality.

• Build Quality:

  • Rugged and reliable design for durability and ease of maintenance.

  • Lightweight and portable.

• Electrode Compatibility: Acidic and Cellulose electrodes.

• Generator Friendly:

  • Machine is specially designed to prevent failure during frequent voltage changes from generators.

Technical Specifications:

• Phase: 1PH & 2PH & 3PH

• Rated Input Voltage: 1PH AC 230V / 2PH-3PH 415V ±10%

• Frequency: 50/60 Hz

• Rated Input Power: 6 KVA (230V) / 9 KVA (415V)

• Rated Input Current: 43A (230V) / 17.5A (415V)

• Welding Current Adjustment Range: 20-400A

• No-load Voltage: 75.3V

• Rated Duty Cycle: 60%

• Machine Efficiency: 85%

• Power Factor: 0.7

• Shell Protection Level: IP21S

• Insulation Grade: F

• Weight: 10 kg

• Dimensions: 480 × 240 × 430 mm
