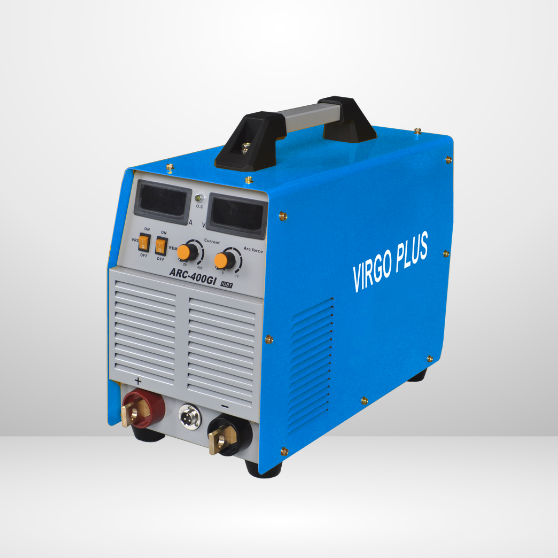

Product Description (Full):

• Technology: Latest inverter with pulse width technology ensuring lightweight and compact design.

• Bridge System: Full wave with full control bridge providing pure DC wave output, ensuring superior welding performance.

• Protection:

  • Protection against overheat, under-voltage, over-voltage, and input surge for safe operation.

• Special Features:

  • Specially designed Capacitor PB — also works with diesel generators.

  • Separate current and voltmeter display.

  • Adjustable ARC force feature.

  • Small welding spatter for cleaner welding results.

• Remote Option:

  • Standard provision for remote control operation with switch (optional accessory: remote with 5m cable).

• Safety:

  • VRD provision for extra safety during non-welding.

• Design:

  • Heavy-duty lug type output terminals.

  • Rugged design ensuring reliability, durability, and ease of maintenance.

  • Lightweight and portable build.

• Electrode Compatibility: Supports Acidic and Cellulose electrodes.

Technical Specifications:

• Phase: 3PH

• Input Power Voltage: AC 415V * 3PH ±10%

• Frequency: 50/60 Hz

• Rated Input Current: 17A

• Rated Output Voltage: 32V

• No-load Voltage: 80V

• Current Adjusting Range: 20-400A

• Duty Cycle: 60%

• Efficiency: 85%

• Welding Electrode Size: 2.5/3.2/4.0 mm

• Insulation Class: F

• Case Protection Degree: IP21

• Weight: 18 kg

• Dimensions: 550 × 235 × 405 mm

Optional Accessories:

• Remote control with 5m cable
