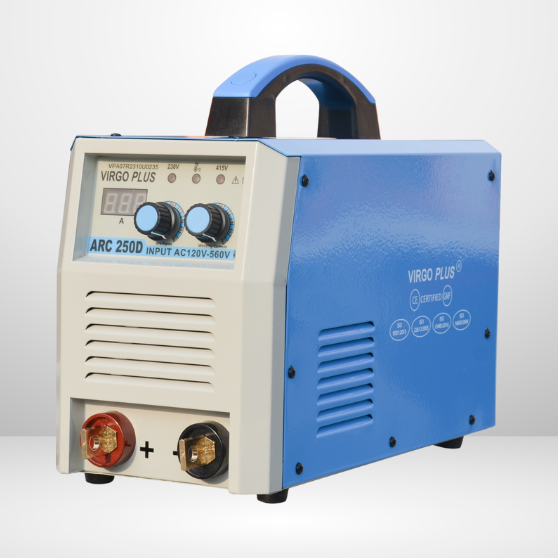

Product Description (Full):

• Technology: Latest inverter with pulse width technology offering lightweight and compact design.

• Efficiency: High-frequency transformer with soft magnetic ferrite ensures excellent efficiency.

• Safety Features:

  • VRD low voltage technology for added safety during non-welding times.

  • Protection against over-voltage, under-voltage, and input surge ensures safe operation.

• Energy Saving:

  • Passive power factor correction system.

  • Auto circuit cut-off after 5 seconds of no arc activity for safe and reliable energy savings.

• Performance Features:

  • Continuously adjustable arc starting current for better arc initiation.

  • Arc force and anti-stick features for improved electrode burning and better welding performance.

• Design:

  • Rugged and durable construction for high reliability and easy maintenance.

• Electrode Compatibility: Acidic and Cellulose electrodes supported.

Standard Accessories:

• 1 set electrode holder with 16mm² cable (2m) + 35-50 male connector

• 1 set earth clamp with 16mm² cable (1.5m) + 35-50 male connector

Technical Specifications:

• Rated Input Voltage: 1PH AC 230V / 2PH 415V ±10%

• Phase: 1PH & 2PH

• Frequency: 50/60 Hz

• Rated Input Power: 5 KVA (230V) / 5.4 KVA (415V)

• Rated Input Current: 37A (230V) / 21A (415V)

• Welding Current Adjustment Range: 20-250A

• No-load Voltage: 72V

• Rated Duty Cycle: 60%

• Machine Efficiency: 85%

• Power Factor: 0.7

• Insulation Grade: F

• Shell Protection Level: IP21S

• Dimensions: 410 × 190 × 320 mm

• Weight: 5.5 kg
